Penco Pallet Rack
 Pallet Rack Plus &
Penco Pallet Rack is a carefully
engineered system designed to provide
highly efficient storage of palletized
items. Combining design and excellence
with the use of high strength steel to
achieve a superior strength to weight
ratio, Penco Pallet Rack can handle
nearly any storage job you can give it.

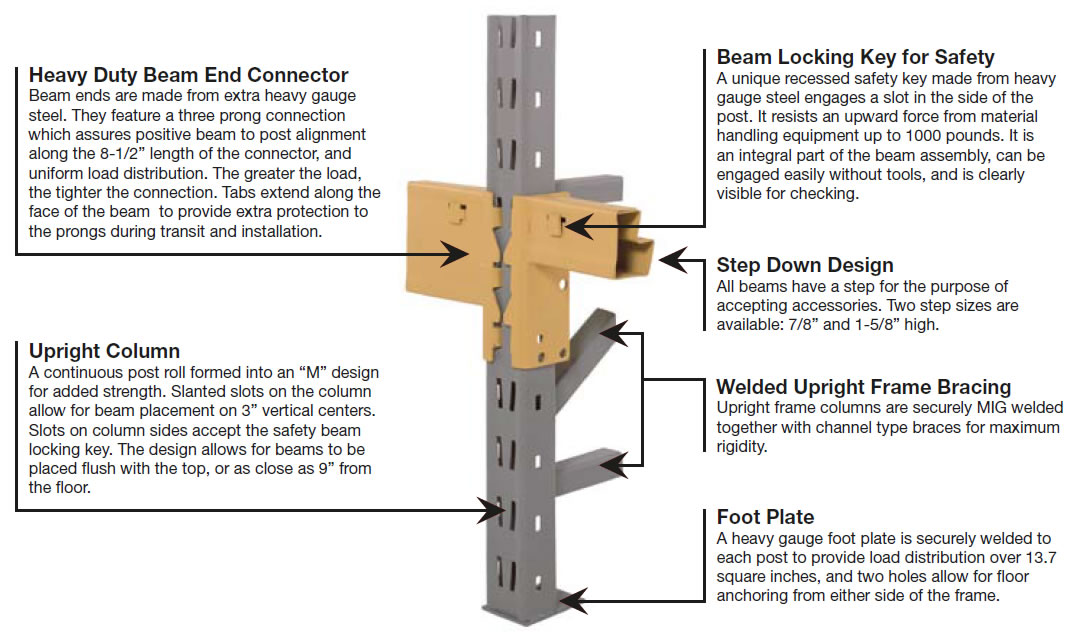

The basic components of Penco Pallet
Rack are Upright Frames and Beams.
Each is manufactured to exacting
tolerances to provide many years of
dependable service at their rated loads.
The following pages detail the
wide range of sizes, capacities and
accessories that make Penco Rack
one of the best values for your storage
dollar.
If you have Penco Pallet Rack or need help identifying the brand you have please give us a call 1-800-952-0151 or click here for a quote.
  Penco Pallet Rack Plus is
engineered for use in areas
where high seismic activity or
other severe conditions exist.
To learn the seismic rating
where your pallet rack will be
in use, contact your Penco
representative.
Plus Beam End
Connectors.
The Plus beams
have 4 connectors
for a stronger
connection
between the
beam and the
upright post in conditions with
greater lateral forces. The beam
is welded 3” down from the top
of the connector so loading is evenly distributed across all four
connector prongs. The beam
locking key is the same as used on
standard beams.
Plus Upright Frames with Large
Footplate's. Each Plus upright
frame has two 5” x 7” x 3/8” thick
footplate's with four 9/16” diameter
anchoring holes. The extra holes
provide the installer with more
choices for floor anchoring.
|
|
Penco Pallet Rack Upright Frames are
available in five load capacities. A letter
code stamped into the face of the post
indicates the frame type. Depths of 30”,
36”, 42”, 48”, 54” and 60” are standard,
but other depths and double-posted
and cantilever frames are available.
Standard heights range from 48” to
240” in 6” increments, but greater
heights can be achieved when splices
are used.
Beam heights adjust on 3” vertical
centers, and are independent on each
side of the frame. Beams of any type
can be placed along the full height of
the post; there are no dead spots on the
post, even across a splice. Various load
rated frames can be combined in a row
of rack for maximum economy.
Penco Pallet Rack Upright Frames are
furnished completely fabricated, welded
into rigid units.
